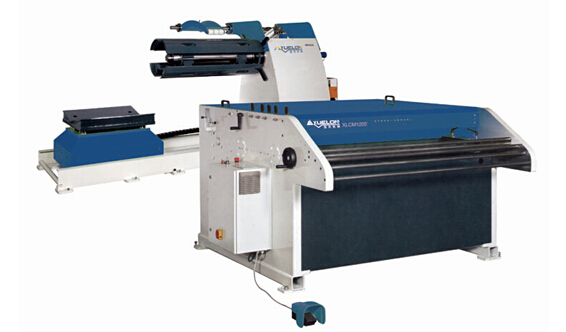

XLCM leveling and horizontal cutting machine has 2 designs that is specialized for the width of 1250mm and 1550mm rolling material. The main frame is designed with 50mm high strength plate frame structure, which make sure the high speed requirement for transferring material, leveling and cutting horizontally. All the rolls are driven by wheel and all the parts are designed base on the requirement under mass production with full load working.

Standard parts

Linear guide	TAIWAN HIWIN
Frequency conversion motor	German SEW
Frequency transformer	Japanese Mitsubishi
PLC	Japanese Mitsubishi
Touch screen	Chinese MCGS
Coder	Japanese KOYO
Hydraulic system assembly	Japanese YUKEN
Machine cable	German IGUS
Approach switch	Korean Autonics
Low voltage electrical appliance	France Schneider
Bearing	Sweden SKF
Assembly bearing	Japanese IKO

Functions and Characteristics

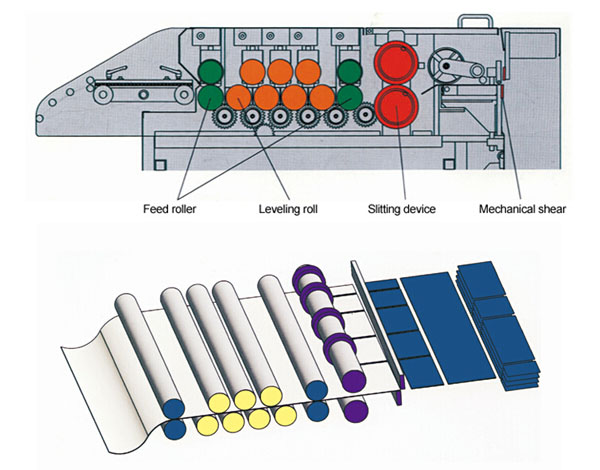

There is correcting device in the material transferring system, in order to avoid material running out.
2 transferring systems with 2 top-down plastic roll structure that will not damage the material.
7 rolls for leveling with 3-top and 4-down.
The leveling roll is made of GCR15 casting material and coating with chrome with strong hardness and strength.
It is suitable for aluminum plate, chrome coating plate and stainless steel plate, etc.
The 10' IFT industrial touch screen is easy to operate.
The closed PLC control that ensure the precision.
It can have 2 to 8 horizontal cutting blades for the cutting.
It has single and double side foam device for your choice.
It has stacking and collecting system for your choice.

Technical parameter

Type	Cutting width	Capacity			Speed	Motor power	Weight
	MM	Carbon steel MM	Stainless steel MM	Aluminum MM	M/min	KW	KG
XLCM1202	1250	2.25	1.50	3.5	30	10/15	3030
XLCM1502	1500	2.00	1.25	3.0	30	10/15	3360
