Performance And Characteristics

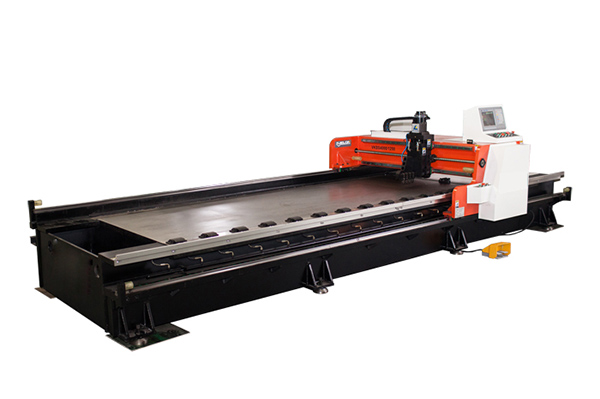

 For VKBS CNC V-cutting Machine, its body adopt frame structure, and its working table is made of structural steel with low alloy and high strength(55mm thickness). The body has good rigidity, sturdiness, and durability;
Its body has heat treatment to eliminate welding stress and decrease deformation. Blasting treatment is used to ensure excellent painting effect;
The machine is driven by precise bronze gears and screw racks. Besides, it has heavy-load linear guideway of Taiwan’s HIWIN group. Its running speed can be adjusted by frequency conversion and its forward-cutting process is stable and efficient;
The bite of VKBS adopts mute ball-screw and linear guideway to ensure its high accuracy;
The plate in VKBS is fixed with hydraulic clamp system, which ensures its fast cutting speed. In hydraulic system, energy accumulator and relief valve are added and electric engine works at intervals, which ensures conservation and hydraulic system security;
VKBS series adopts four bites to cur V-shape groove, so its cutting amount is well-proportioned and can decrease the deformation of workpieces . Besides, it adopts minimum cooling system to prolong knifes’ lifespan and lower manufacturing expenses;
The plate in VKBS series can be cutted vertically and horizontally. In addition, it has a machining function which can process both the front and the back of a plate in the same process;
The machine can be used only through inputting A-CUT and machining procedures in keyboard. According to different operators and materials, processing speed can be adjusted with knobs for easy operation;
Working procedure can be known through displays. It adopts inductor to ensure the safety of operators;
When the device has something wrong, alarming information will appear on its display, which is helpful for maintenance and repair;
This machine can save human consumption, because it needs human force only when workpiece needs to be put in and took out;
The working table of VKBS series has the function of self-repairing, so customers can plane working table by themselves to ensure processing precision;

TechnicalParameters

型号			VKBS-3212	VKBS-4012	VKBS-6012	?
加工性能 Machining Capacity	材料 Plate	材质 Material	STS304&Q235
		长度 Length	3200mm	4000mm	6000mm	?
		宽度 Width	1220mm
		厚度 Thickness	0.6mm-4mm（板料平面度＜3mm ）
		最小边离Minimum edge	8mm
系统配置 CNC Specifics	控制方式 Control Type		3轴CNC控制（Y1、Y2、Z）
	显示器 Display		10寸高清液晶彩色屏
	储存容量 Memory Capacity		20组，112道/组 （可加SD卡扩展）
	传动方式 Working System		滚珠丝杆/直线导轨/齿轮齿条
加工速度Machining Sped	横梁（X轴）切削Forward-Cutting		50m/min(变频可调)
	横梁（X轴）回程 Backward		55m/min
	刀架（Y1轴）及端压料（Y2轴）		20m/min
	刀架（Z轴）上下 Z-Axis UP-Down		20m/min
加工精度 Machining Precision	刀架（Y1轴）最小分辩率Y1 Precision		0.001mm
	刀架（Y1轴）最大距离 Y1 Stoke		1250mm
	刀架上下（Z轴）最小分辩率 Y1 Precision		0.001mm
	刀架上下（Z轴）最大距离 Z Stoke		50mm
驱动方式 Driving Mode	横梁（X轴）X-Axis		5.5KW变频电机 SEW Converter Motor
	刀架上下移动（Z轴）X-Axis		0.85KW伺服电机 YaskawaServo Motor
	刀架（Y1轴）及端压料（Y2轴） Y1&Y2		0.85KW伺服电机 YaskawaServo Motor
夹紧装置 Clamping Device	液压系统 Hydraulic		1.5Kw/8L/10Mpa
外型尺寸 Machine Size	长度 Length		5200mm	6000mm	8000mm	?
	宽度 Width		2380mm
	高度 Highth		1580mm
	重量 Weight		7200kg	8000kg	10000kg	?
工作台平面度 Table Flatness			±0.02mm/M
主电源 Main Power			380V/50Hz/3Phase
