We can adjust the milling head to any space angle by rotating two main components,
processing more conveniently.
2.Horizontal spindle adopts three-support structure, increasing spindle rigidity, and dynamic braking system with
large torque, quickly stop and reliability.
3.X,Y,Z axis of worktable can be both manual and motorized feed, and rapid feeding
with high efficiency.
4.X axis travel is 1000mm, which expands the process range. X,Y,Z axis guidways adopt
harden and grinding, high accuracy and long life.
5.The transmission gear use several lubrication formsnlike centrlized lubrication,
oil-immersed lubrication, hand-operate lubrication, oil cup
fixed-point lubrication, which have good effect with low noise.
6.The structure has so good rigidity that it can bear heavy cutting work load.
And it uses carbide cutting tools to make high speed cutting.
Standard accessories:
Milling chuck collect
Middle sleeve
Inner-hexagon spanners
Dead head spanners
Machine vice
Mill arbor
Draw bar
Optional accessories:
DRO
58pcs Clamping kits
Universal dividing haed
Vertical&horizontal worktable

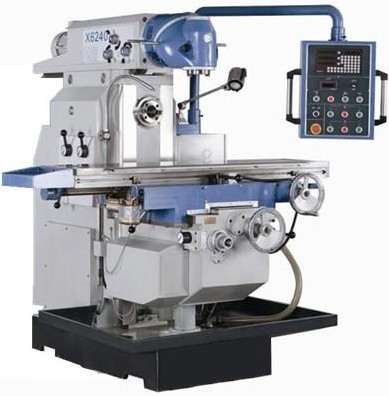

| Specification | Unit | X6240 |
| Spindle taper | ISO50(vertical,horizontal) | |
| Distance from vertical spindle to table | mm | 200~620 |
| Distance from vertical spindle to column | mm | 400~1000 |
| Distance from horizontal spindle to table | mm | 0~420 |
| Spindle speed range | rpm | 35~1600(vertical) 35~1500(horizontal) |
| Worktable size | mm | 1600*400 |
| T-slot of table (No./Width/Distance) | 5/18/70 | |
| Distance from horizontal spindle to arm | mm | 210 |
| Max.worktable travel | mm | 1000×300×420 |
| Worktable X,Y axis power feed | mm/min | 40~1000 rapid1800 |
| Worktable Z axis power feed | mm/min | 10~250 rapid450 |
| Main motor power | kw | 4(vertical) 7.5(horizontal)) |
| Worktable X,Y,Z axis servo motor power | kw | 2.4 |
| Coolant pump motor power | KW | 0.09 |
| Flowing of coolant pump | 1/min | 25 |
| N.W./G.W. | KG | 3500/3700 |
| Overall dimensions (LxWxH) | mm | 2080×2360×2050 |
