| Model&Name | Unit | X6236AS |
| Universal turn around milling machine | ||
| Table surface | mm | 2000X360 |
| Numbers、width&distance between T - slot | mm | 3×18×70 |
| Max.longitudinal travel | mm | 1620 |
| Max.cross travel | mm | 400 |
| Max.vertical travel | mm | 500 H / 700 V |
| Travel of arm | mm | 470 |
| Swivel angle of the milling head | degree | ±360° |
| Max.rotary angle of table | degree | ±45° |
| Level spindle taper | taper | 7:24 ISO50 |
| Milling head spindle taper | taper | 7:24 ISO50 |
| Level spindle range of speed | rpm | 60-1800 |
| Milling head spindle range of speed | rpm | 50-1500 |
| Main drive motor milling head spindle | kw | 5.5 |
| Main drive motor level spindle | kw | 5.5 |
| Feed motor | kw | 3 |
| Net weight of machine | kg | 3980 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Swivel head milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Swivel head milling machine

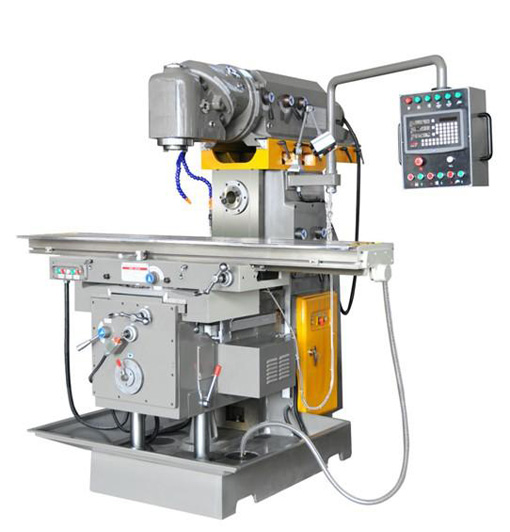

X6236AS UNIVERSAL TURN AROUND MILLING MACHINE
