Swivel head milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Swivel head milling machine

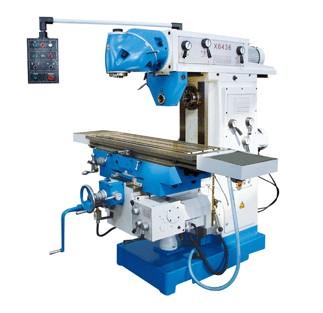

X6436

SPECIFICATION UNIT X6436
TABLE SIZE MM 1320×360 1600×360
TRAVEL MM 1000（X）
280/290 (Y)
400 (Z)		 1300（X）
280/290 (Y)
400 (Z)
T-SLOT MM 3-14-95 3-14-95
SPINDLE TAPER   ISO50 ISO50
SPINDLE SPEED R/MIN 58-1800(H),60-1750(V) 58-1800(H),60-1750(V)
TABLE FEED RANGE MM/MIN 22-420 (50HZ) (X)
22-393(50HZ) (Y)
10-168(50HZ) (Z)		 22-420 (50HZ) (X)
22-393(50HZ) (Y)
10-168(50HZ) (Z)
RAPID FEEDING MM/MIN 1290 (50HZ) (X)
1205 (50HZ) (Y)
513 (50HZ) (Z)		 1290 (50HZ) (X)
1205 (50HZ) (Y)
513 (50HZ) (Z)
SPINDLE NOSE TO TABLE SURFACE MM 0-400 0-400
SPINDLE CENTER TO ARM SURFACE MM 175 175
TABLE FEEDING SPEED MM/MIN 22-420(X);
22-393(Y);
10-168(Z)		 22-420(X);
22-393(Y);
10-168(Z)
TABLE SWIVEL ANGLE   ±35° ±35°
ARM TRAVEL MM 500 500
MOTOR POWER KW 4 4
DIMENSION MM 2070*2025*2020 2070*2025*2020
N/W KG 2300 2300
