| Specification | Unit | Technical parameters | ||
| Spindle taper | 7:24 ISO40(V)；7:24 ISO50(H) | |||
| Distance from spindle center line to column surface | mm | 350~850 | ||
| Distance from spindle nose to worktable | mm | 210~710 | ||
| Distance from spindle center line to worktable | mm | 0~500 | ||
| Distance from spindle center line to arm | mm | 175 | ||
| Spindle speed | r/min | 11steps 35~1600 (V) ；12steps 60~1800 (H) | ||
| Worktable size | mm | 1250×360 | ||
| Worktable travel | Longitudinal | mm | 1000 | |
| Cross | mm | 320 | ||
| Vertical | mm | 300 | ||
| Worktable longitudinal/ cross power feed | mm/min | 8steps 15~370 ；Rapid:540 | ||
| Worktable elevating power feed | mm/min | 590 | ||
| Worktable “T”slot | Number | mm | 3 | |
| Width | mm | 18 | ||
| Distance | mm | 80 | ||
| Main motor | Kw | 2.2 (V) 4 (H) | ||
| Worktable power feed motor | W | 750 | ||
| Worktable elevating motor | KW | 1.1 | ||
| Coolant pump | W | 90 | ||
| Coolant flow | L/min | 25 | ||
| Overall dimension (L×W×H) | mm | 2220×1790×2040 | ||
| Net weight | kg | 2400 | ||
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Swivel head milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Swivel head milling machine

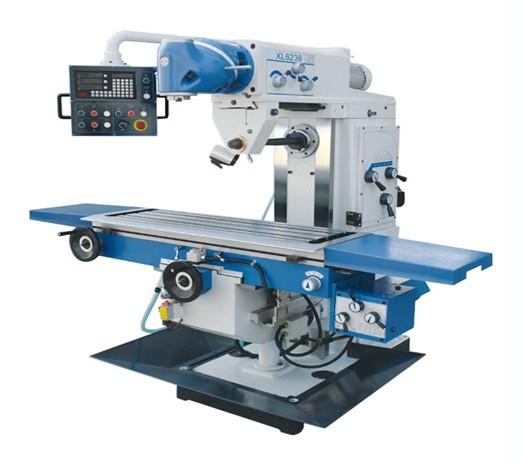

XL6236 Swivel head milling machine
