| Specification | Unit | Technical parameters | ||
| Spindle taper | 7:24 ISO40 | |||
| Max boring dia | mm | 120 | ||
| Spindle speeds ram(step) | Vertical | rpm | (20 steps)63-5817 | |
| Horizontal | rpm | 40-1300 (12) | ||
| Distance between spinde and table | mm | 110-470 | ||
| Distance horizontal spinde to table | mm | 0-300 | ||
| Distance from spindle to column | mm | 155-455 | ||
| Feeding rate for spindle | mm | 0.038,0.076,0.203 | ||
| Spindle travel | mm | 120 | ||
| Table travel | mm | 600X240X300 | ||
| Table size | mm | 1120X280 | ||
| T-OF table (Number/width/distance) | mm | 3X14X63 | ||
| Motor power | Vertical | kw | 2.2 | |
| Horizontal | kw | 2.2 | ||
| Motor of table power feed | w | 370 | ||
| Coolant pump | w | 40 | ||
| Overall dimension | mm | 1660×1340×2130 | ||
| Net weight | Kg | 1250 | ||
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

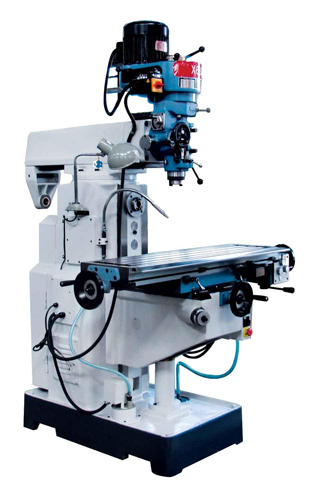

XL6328
