| SPECIFICATION | UNIT | XZ7550C | XZX7550CW |
| TABLE SIZE | MM | 800×240 | 800X240 |
| SPINDLE SPEEDRANGE | R/MIN | 115-1750 | 115-1750 |
| TABLE TRAVEL | MM | 400×200 | 385X200 |
| MAX.DRILLING DIA. | MM | 50 | 50 |
| MAX. END MILLING WIDTH | MM | 100 | 100 |
| MAX. TAPPING DIA. | MM | M16 | M16 |
| MAX.VERTICAL MILLING DIA. | MM | 25 | 25 |
|
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE |
MM | 70-420 | 70-420 |
| SPINDLE SPEED | RPM | 115-1750 | 115-1750V/58-1355H |
| SPINDLE TRAVEL | MM | 120 | 120 |
| SPINDLE MOTOR POWER | KW | 0.85/1.5 | 0.85/1.5 |
| HORIZONTAL MOTOR POWER | KW | 2.2 | |
| OVERALL DIMENSION(L×W×H) | MM | 1290×1140×2100 | 1290×1140×2100 |
| NET WEIGHT | KG | 800 | 970 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

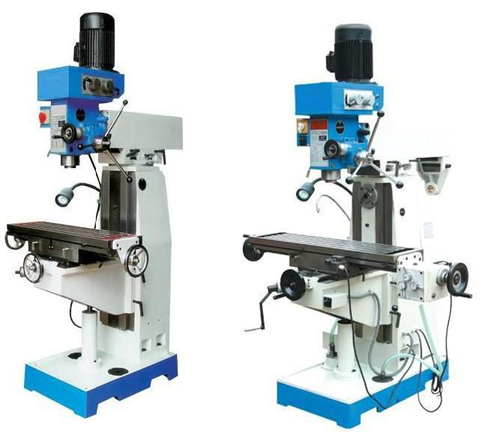

XZ7550C XZX7550CW
