| SPECIFICATION | UNIT | X716 |
| TABLE SIZE | MM | 2500×600 |
| TABLE TRAVEL | MM | 1500×650*700 |
|
MIN. DISTANCE FROM HORIZONTAL SPINDLE AXIS TO WORKTABLE SURFACE |
MM | 30 |
|
MIN. DISTANCE FROM VERTICAL SPINDLE NOSE TO WORKTABLE SURFACE |
MM | 49 |
|
DISTANCE FROM VERTICAL SPINDLE AXIS TO COLUMN GUIDEWAY |
MM | 110 |
| NO./WIDTH/DISTANCE OF SLOTS | MM | 3-22-152 |
| SPINDLE TAPER | ISO50 | |
| LONGITUDINAL,CROSS FEED SPEED RANGE | MM/MIN | 20-2200 |
| RAPID FEED SPEED(X,Y,Z) | MM/MIN | 3000 |
| SPINDLE SPEEDRANGE | R/MIN | 50-1624 |
| POWER OF SPINDLE MOTOR | KW | 11 |
| MAX. LOAD OF TABLE | KG | 3000 |
| OVERALL DIMENSION(L×W×H) | MM | 3200×3200×2720 |
| NET WEIGHT | KG | 12000 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002

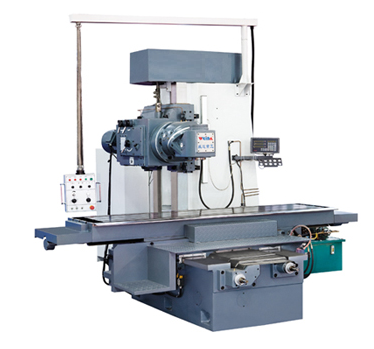

Bed type milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Bed type milling machine
