| Specification | Unit | X713 |
| Spindle taper | ISO40 | |
| Table size | mm | 1525×320 |
| Table travel | mm | 1050×470 |
| Spindle quill travel | mm | 127 |
| NO./width/distance of T-slot | mm | 3-14-80 |
| Spindle speed steps | 10 steps | |
| Spindle speed range | r.p.m | 70~3620 |
| Spindle feed rate capacity | r/min | 0.045mm;0.086mm;0.142mm/rev |
|
Distance between spindle axis and column guideway |
mm | 450 |
|
Distance between spindle nose and table surface |
mm | 75-595 |
| Spindle motor power | HP | 5 |
| Overall dimension(L×W×H) | mm | 2565×1920×2290 |
| Net weight | kg | 2520 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002

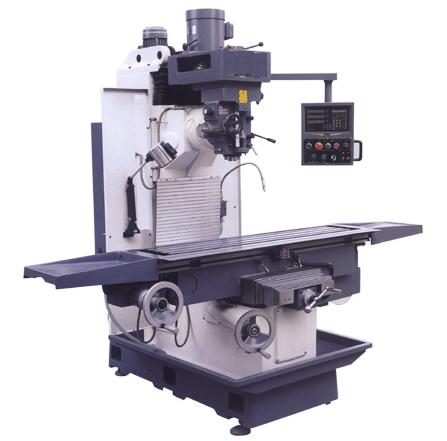

Bed type milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Bed type milling machine
