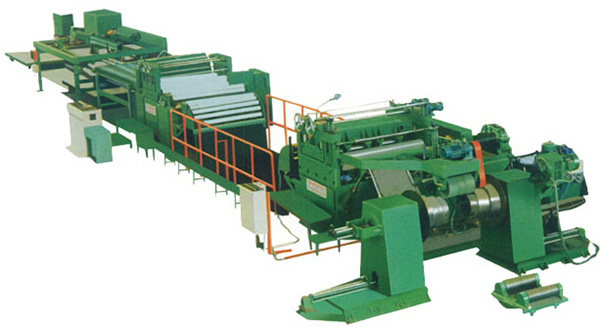

This production line is used for coil with different specifications, through uncoiling, leveling and cutting to length to flattened plate as needed length and width.
This line is composed of coil car, double support uncoiler, pre-leveler, finish-leveler, length gauge, cut to length machine, stacker, servo driven system, etc. as well as pendulum middle bridge, pressing and guiding device and steering device.
main technical parameter
ing device and steering device.
| model | T44QK- | T44QK- | T44QK- | T44QK- |
| name | 2×1300 | 2×1600 | 3×1300 | 3×1600 |
| Coil thickness(mm) | 0.3-2 | 0.3-2 | 0.3-3 | 0.3-3 |
| Coil width(mm) | 800-1300 | 800-1600 | 800-1300 | 800-1600 |
| Cutting length range(mm) | 10.0-9999 | 10.0-9999 | 10.0-9999 | 10.0-9999 |
| Stacking length range(mm) | 300-4000 | 300-4000 | 300-4000 | 300-4000 |
| Cutting length precision(mm) | ±0.3 | ±0.3 | ±0.5 | ±0.5 |
| Leveling precision(mm/m2) | 1-2 | 1-2 | 1-2 | 1-2 |
|
leveling speed (2000mm/min) |
35pcs | 35pcs | 35pcs | 35pcs |
| coil weight(T) | 10 | 10 | 20 | 20 |
| roll Dia.(mm) | 85 | 90 | 90 | 100 |
