This series line is used for HR coil(0.5mm-25mm) with different specifications, through uncoiling-leveling-cut to length to flattened plate as needed length.

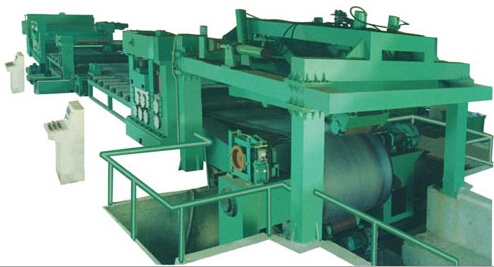

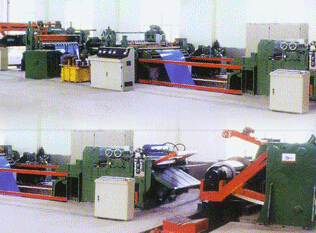

This line is composed of coil car, double support uncoiler, hydraulic pressing and guiding, shovel head, pre-leveler, finish leveler, cut to length machine, stacker, accompany electric control system, hydraulic system, etc. as well as pendulum middle plate, steering device.
main technical parameter
| MODEL/NAME | 3×1600 | 6×1600 | 8×2000 | 10×2200 | 12×2200 | 16×2200 | 20×2500 |
25×2500 |
| Coil thickness(mm) | 0.5-3 | 1-6 | 2-8 | 2-10 | 3-12 | 4-16 | 6-20 | 8-25 |
| Coil width(mm) | 1600 | 1600 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 |
| Length range(mm) | 1000-4000 | 1000-6000 | 1000-8000 | 1000-10000 | 1000-12000 | 1000-12000 | 1000-12000 | 1000-12000 |
| Cutting length precision(mm) | ±0.5 | ±0.5 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| leveler roll No | 15 | 15 | 13 | 13 | 11 | 11 | 9 | 9 |
| Roller Dia | 90 | 140 | 155 | 160 | 180 | 200 | 230 | 260 |
