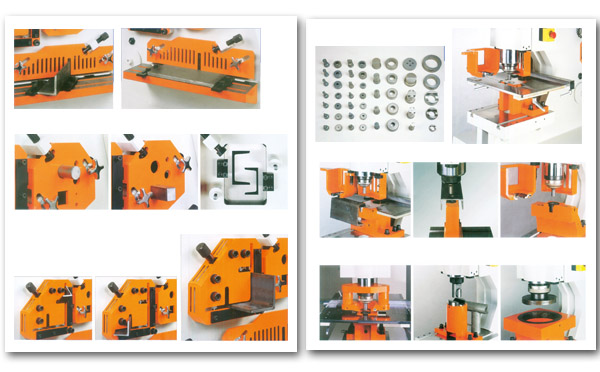

The machine adopts mechanical driving,the frame adopts cast steel,steel welded strcture which has suffcient strength and rigidity.The machine is an ideal equipment for cutting square bar,angle bar,round bar,Channel and joist,as well as punching and notching.


Technical Data:

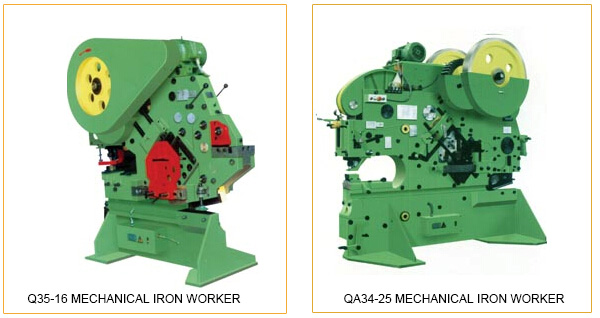

Model	QA34-25	Q35-16
Pressure(Ton)	110	63
Max.cutting thickness(mm)	25	16
Plate strength(N/mm2)	≤450	≤450
Cutting angle(degree)	11°	13°
Sheraing size of one stroke(mm)	28*160	20*140
Ram stroke(mm)	36	26
Number of strokes(cpm)	25	36
Throat depth(mm)	600	450
Punching thickness(mm)	25	16
Max.Punching diameter(mm)	35	28
Power of main motor(kw)	7.5	4
Overall dimensions(L*W*H)mm	2885*1290*2460	1877*1945*725
Weight of machine(kg)	7000	2830
