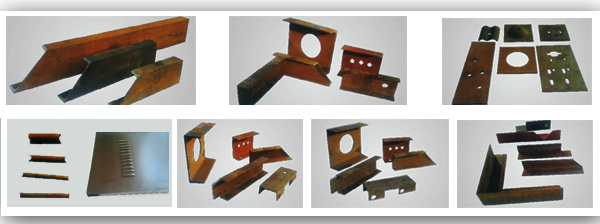

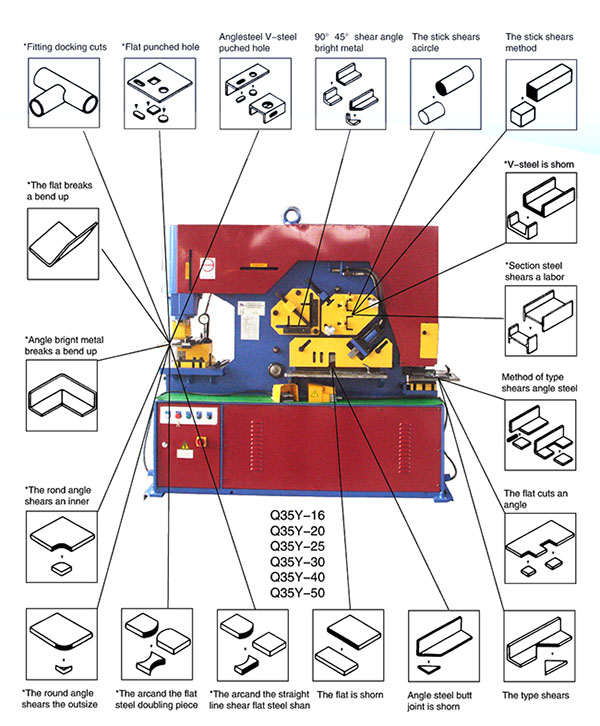

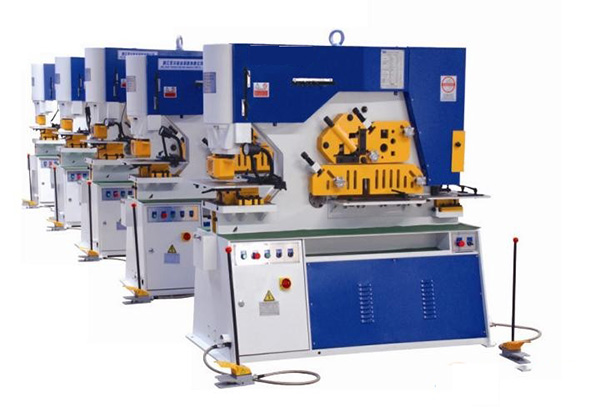

They adopt hydraulic driving system and they are the latest iron workers in our country,Various metal plate,squarebar,Round bar,angle,channel and joist can be cut,punched and notched on the machine.It is also equipped with a stop device for cutting.
echnical Data:

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
Pressure(Ton)	60	90	120	160
Max.cutting thickness(mm)	16	20	25	30
Plate strength(N/mm2)	≤450	≤450	≤450	≤450
Cutting angle(degree)	7°	8°	8°	8°
Sheraing size of one stroke(mm)	16*250 8*400	20*330 10*480	25*330 16*600	30*355 20*600
Ram stroks(mm)	80	80	80	80
Number of strokes(cpm)	8	8	6	6
Throat depth(mm)	300	355	400	600
Punching thickness(mm)	16	20	25	26
Max.Punching diameter(mm)	25	30	35	38
Power of main motor(kw)	4	5.5	7.5	11
Overall dimensions(L*W*H)mm	1640*730*1770	1640*800*1900	2355*960*2090	2680*1040*2300
Weight of machine(kg)	1600	2000	4800	6800

◆A Special order for the joist and channel moulds needed.

Profile	Round Bar	Square Bar	Equal Angle		T-Bar		joistq	Channel
			90°Shearing	45°Shearing	90°Shearing	45°Shearing
Section View
Q35Y-16	45	40*40	125*125*12	70*70*8	120*120*12	60*60*8	126*74*5	126*53*5.5
Q35Y-20	50	50*50	140*140*12	70*70*10	140*140*12	70*70*10	160*86*6	160*60*6.5
Q35Y-25	60	50*50	160*160*14	80*80*7	160*160*14	80*80*10	200*102*9	200*75*9
Q35Y-30	65	55*55	180*180*16	80*80*10	180*180*16	80*80*10	280*124*10.5	280*86*11.5
Q35-16	45	40*40	125*125*12	100*100*10	125*125*12	100*100*10	180*94*6.5	180*68*7
QA34-25	65	55*55	150*150*18	110*110*14	150*150*18	110*110*14	300*126*9	300*85*7.5
