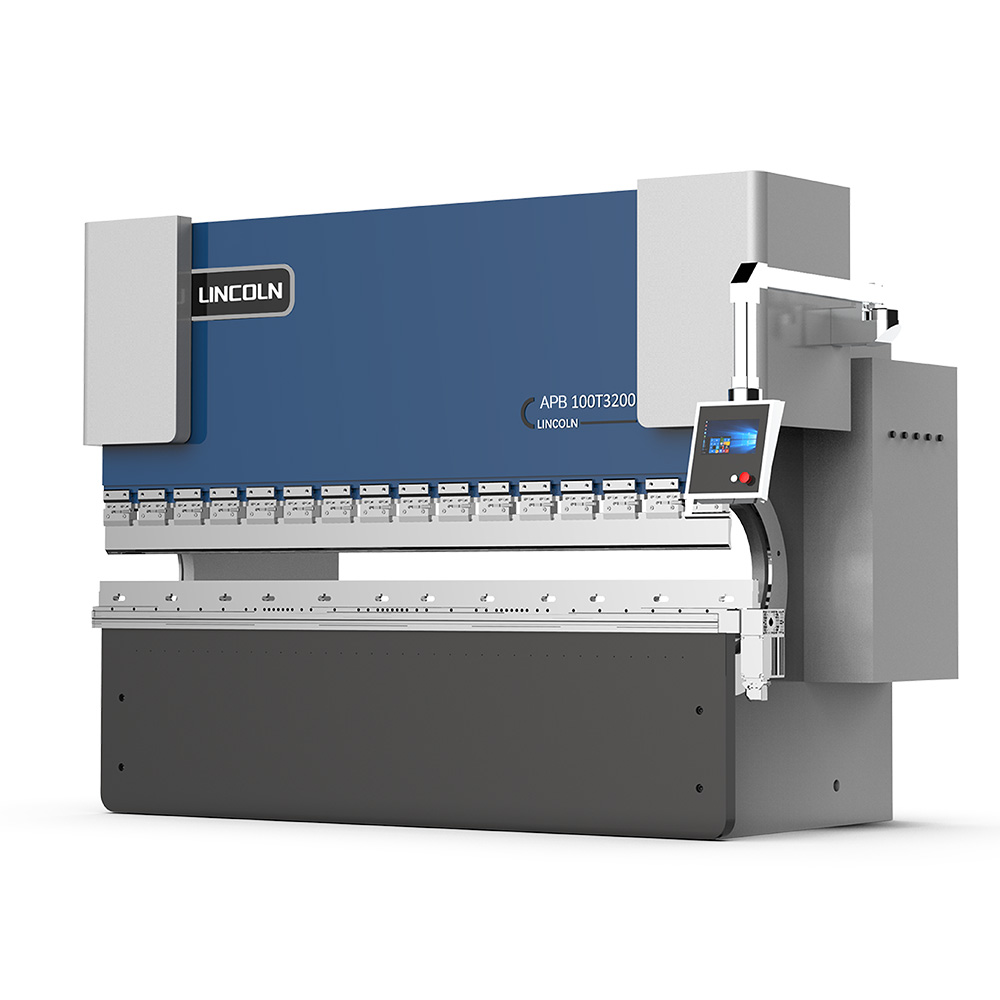

NC Press Brake
- Price： 0.00

  List price： 0.00

Product information

Product Description

Main Features:

Robust Framework
Euro hydraulics, high performance & durability
Backgauge For/Rev by timing belt, precision up to +0.1mm
High quality cylinder with depth stop, using Intl brand sealsStd. intermediate clamping & Euro type gooseneck
top tool + multi v-die block
Can option with all kinds of NC controllers

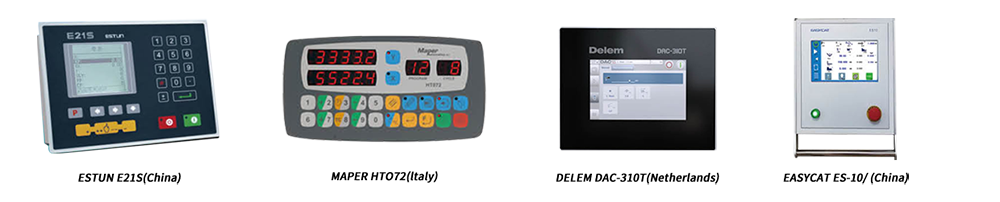

Controller:

Specifcations:

Model				APB-40.25	APB-63.25	APB-63.31	APB-110.25	APB-110.31	APB-160.31
Norminal	Pressure		KN	400	630	630	1100	1100	1600
Max.	Bending	Length	mm	2500	2500	3100	2500	3100	3100
Distance	Between	Frames	mm	2050	2050	2550	2050	2550	2550
Throat	Depth		mm	250	275	275	310	310	310
Slider	Stroke		mm	100	100	100	150	150	200
Maximum	opening	height	mm	315	315	315	400	400	460
Main Motor			KW	5.5	5.5	5.5	7.5	7.5	11
Weight			Kg	3000	4000	4800	6000	6800	9500
Length			mm	2500	2500	3100	2500	3100	3100
Width			mm	1200	1250	1250	1500	1500	1600
Height			mm	1900	2100	2100	2400	2400	2400

APB-110.40	APB-160.40	APB-200.31	APB-200.40	APB-200.50	APB-200.60	APB-250.31	APB-250.40
1100	1600	2000	2000	2000	2000	2500	2500
4000	4000	3100	4000	5000	6000	3100	4000
3140	3140	2550	3140	4000	5000	2550	3140
310	310	310	310	310	310	350	350
150	200	200	200	200	200	250	250
400	460	460	480	480	480	480	480
7.5	11	15	15	15	15	22	22
9000	11000	11000	13000	16000	20000	16000	19000
4000	4000	3100	4000	5000	6000	3100	4000
1500	1600	1650	1600	1700	1800	1800	1800
2400	2500	2500	2500	2600	2800	2800	2800

APB-250.50	APB-250.60	APB-300.40	APB-300.50	APB-300.60	APB-400.40	APB-400.50	APB-400.60
2500	2500	3000	3000	3000	4000	4000	4000
5000	6000	4000	5000	6000	4000	5000	6000
4000	5000	3140	4000	5000	3140	4000	5000
350	350	350	350	350	400	400	400
250	250	250	250	250	300	300	300
480	480	500	500	500	550	550	550
22	22	22	22	22	30	30	30
24000	28000	20000	25000	30000	24000	29000	35000
5000	6000	4000	5000	6000	4000	5000	6000
1900	2000	1800	1900	2000	2100	2200	2200
2900	3100	2900	2900	3100	3100	3200	3400
