Introduction
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
|
SPECIFICATIONS |
UNIT |
CS6240 |
CS6250/B |
CS6266/B |

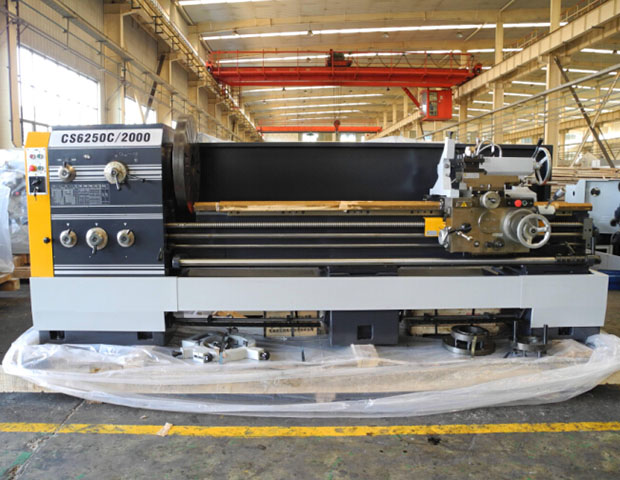

CS6250C |
CS6266C |
|
|
Capacity |
Max. swing dia. over bed |
mm |
Φ400 |
Φ500 |
Φ660 |
Φ500 |
Φ660 |
|
|
Max. swing dia.in gap |
mm |
Φ630 |
Φ710 |
Φ870 |
Φ710 |
Φ870 |
|
|
Max. swing dia. over slides |
mm |
Φ220 |
Φ300 |
Φ420 |
Φ300 |
Φ420 |
|
|
Max. workpiece length |
mm |
1000/1500/2000/3000 |
||||
|
Spindle |
Spindle bore diameter |
mm |
Φ52 |
Φ82 |
Φ105 |
||
|
|
Type of spindle nose |
no |
CS6240:ISO 702/III NO.6 bayonet lock, others:ISO 702/II NO.8 com-lock type |
||||
|
|
Spindle speed |
rpm |
24 steps 9-1600 |
24 steps |
12 steps |
||
|
|
|
|
|
8-1400 |
36-1600 |
||
|
|
Spindle motor power |
KW |
7.5 |
||||
|
Tailstock |
Diameter of quill |
mm |
Φ75 |
Φ90 |
|||
|
|
Max. travel of quill |
mm |
150 |
||||
|
|
Taper of quill (Morse) |
MT |
5 |
||||
|
Turret |
Tool O.D. size |
mm |
25X25 |
||||
|
Feed |
Max. X travel |
mm |
145 |
||||
|
|
Max. Z travel |
mm |
320 |
||||
|
|
X feed range |
mm/r |
93 kinds 0.028-6.43 |
65 kinds 0.063-2.52 |
|||
|
|
Z feed range |
mm/r |
93 kinds 0.012-2.73 |
65 kinds 0.027-1.07 |
|||
|
|
Metric threads |
mm |
48 kinds 0.5-224 |
22 kinds 1-14 |
|||
|
|
Inch threads |
t.p.i |
48 kinds 72-1/4 |
25 kinds 28-2 |
|||
|
|
Module threads |
πmm |
42 kinds 0.5-112 |
18 kinds 0.5-7 |
|||
|
|
Diametric pitch threads |
t.p.i.π |
42 kinds 56-1/4 |
24 kinds 56-4 |
|||
|
|
Weight |
Kg |
1795/2050 |
2050/2100 |
2400/2600 |
2100/2300 |
2200/2400 |
|
|
|
|
2250/2450 |
2300/2500/2900 |
2800/3000 |
2500/2900 |
2600/3000 |
