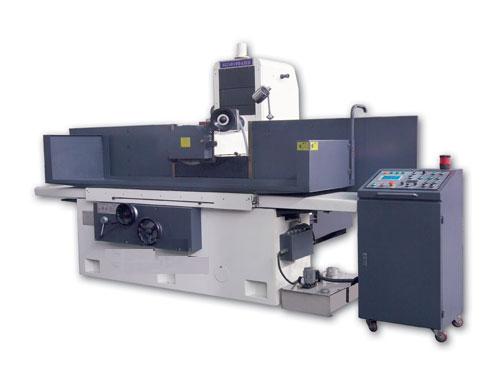

Headstock runs in preloaded angular ball bearings and features a high load capacity
X and Y axis guide ways are counter-laminated(plastic)
Separate hydraulic unit with oil coole
X axis with high-dynamic, hydraulic drive
Combination of box ways and V-guides on X and Y, plus rectangular guide way on Z
Premium components ensure maximum accuracy for continuous operation
Standard Equipment:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tool box and tools
Wheel dresser
Stand not include diamond pen
Standard grinding wheel
Foundation bolt
Leveling wedge and bolt
Built in electro magnetic chuck controller
PLC auto grinding controller only for AHD/SD models
Optional Accessories：
Wheel stand
Standard magnetic chuck
Coolant tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper
| Model | Unit |
SG50100AHR SG50100AHD |
SG50160AHR SG50160AHD |
SG60120AHR SG60120AHD |
SG60160AHR SG60160AHD |
SG60220AHR SG60220AHD |
||
| Table size | mm | 500x1000 | 500x1600 | 610x1200 | 610x1600 | 610x2200 | ||
| Max grind(W x L) | mm | 500x1000 | 500x1600 | 610x1200 | 610x1600 | 610x2200 | ||
| Max distance from table to spindle center | mm | 600 | ||||||
| Magnetic chuck size(optional equipment) | mm | 500x1000x1 | 500x800x2 | 600x1000x1 | 600x800x2 | 600x1000x2 | ||
| Speed of table longitudinal movement | m/min | 5-25 | ||||||
|
Wheel head cross movement |
Auto feed | Mm/t | 0.5-20 | |||||
| Rapid speed | Mm/min | 1.25 | ||||||
|
Feed of hand wheel |
Mm/div Mm/gra |
0.02 | ||||||
| Wheel head vertical movement | Auto feed | Mm/t | 0.005、0.01、0.015、0.02、0.03、0.04（Only for AHD model） | |||||
| Rapid feed | mm/min | 230 | ||||||
|
Feed of hand wheel |
Mm/div Mm/gra |
0.002 | ||||||
| 960(14050)Wheel | Speed | Rpm | 1450(50Hz)、1740（60Hz） | |||||
| Size | Mm | 355x(20-50)x124 | ||||||
| Motor of s500pindle | Kw | 7.5 | ||||||
| Max loading capacity of table | Kg | 700 | 880 | 970 | 1230 | 1690 | ||
| Total rated power | Kw | 12 | 14 | |||||
| Height of machine | Mm | 2390(include the packing base) | ||||||
| Floor space | Mm | 4700x2550 | 7120x2550 | 4740x2750 | 5340x2750 | 6740x2750 | ||
| Gross weight | kg | 5500 | 6000 | 6500 | 7000 | 8000 | ||
