| NO. | Technical Parameter | Type | ||||
| HBJ-M5 | HBJ-M10 | HBJ-M30 | HBJ-M50 | HBJ-M100 | ||
| 1 | Rated loading (T) | 0.5 | 1 | 3 | 5 | 10 |
| 2 | Max Eccenteric (mm) | 200 | 150 | 100 | ||
| 3 | Max Gravity (mm) | 500 | 500 | |||
| 4 | Working table size (mm) | Φ800 | Φ1100 | Φ2000 | ||
| 5 | Rotating speed (rpm) | 0.1～1 | 0.06～0.6 | 0.05～0.5 | ||
| 6 | Rotating Power(KW) | 0.55 | 1.1 | 2.2 | 3 | 1.5 |
| 7 | Elevating speed (rpm) | 1 | 0.4 | 0.4 | 0.6 | |
| 8 | Elevating Power（kW) | 0.25 | 0.75 | 1.5 | 2.2 | 2.2 |
| 9 | Elevating distance(mm) | 700 | 800 | 1100 | ||
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
WELDING AUXILIARY EQUIPMENTThe current position: HOME > PRODUCTS > WELDING AUXILIARY EQUIPMENT

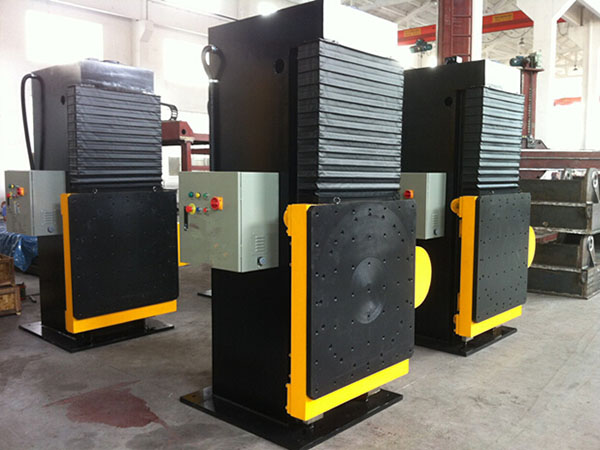

WELDING POSITIONER HBJ-M
