| NO. | Technical Parameter | Type | ||||||||
| HBJ1 | HBJ2 | HBJ4 | HBJ6 | HBJ8 | HBJ10 | HBJ15 | HBJ20 | |||
| 1 | Rated loading (T) | 1 | 2 | 4 | 6 | 8 | 10 | 15 | 20 | |
| 2 | Max eccenteric Distance(mm) | 150 | 200 | |||||||
| 3 | Max Gravity center (mm) | 250 | 300 | 400 | ||||||
| 4 | Working table size (mm) | Φ900 | Φ1200 | Φ1400 | φ1500 | φ1600 | φ1800 | φ1800 | Φ2000 | |
| 5 | Tilting angle (°) | 0°～135° | 0°～＋120° | |||||||
| 6 | Rotating speed (rpm) | 0.12～1.2 | 0.05～0.5 | 0.02～0.2 | ||||||
| 7 | Rotating Power(KW) | 1.1 | 1.5 | 2.2 | 3 | 4 | ||||
| 8 | Tilting speed (rpm) | 0.67 | 0.23 | 0.23 | 0.14 | 0.1 | ||||
| 9 | Tilting Power（kW） | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | |||
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
WELDING AUXILIARY EQUIPMENTThe current position: HOME > PRODUCTS > WELDING AUXILIARY EQUIPMENT

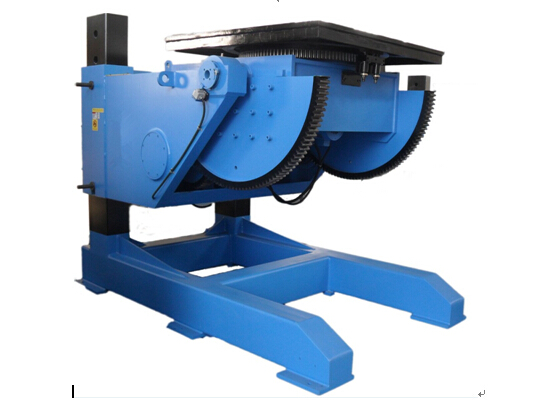

WELDING POSITIONER HBJ
