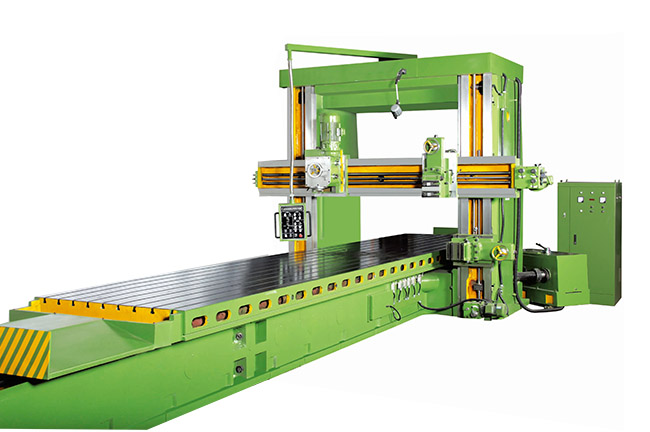

BXM20 SERIES HEAVY GANTRY PLANER MILLING MACHINES
Main transmission of this series products adopts SRD or servo system,wide range of stepless speed change of the table's movement satisfies the requirements of planing/milling/grinding at different speed, independent spindle feeding box enables more balanced feeding to process plane/inclined plane/T slot/combined guideway/rack,etc.
1.To drag high-precision rack with 9-head worm to realize more stable table movement.
2.To get enough lubrication of table at any speed with independent lubrication system.
3.The adoption of heat-treatment techniques like drawing the temper off/quiver-ageing/hyperacoustic quenching on key parts as the machine body/column enables more stable accuracy and longer working life.
4.Machine body/column/beam/table are designed according to the parameters of heavy-duty machines, and the material is cast iron (≥HT250),so the machine is with better stability & accuracy retentivity.
|
型号model 参数Parameter |
BXM20系列重型龙门刨铣床 BXM20 SERIES HEAVY GANTRY PLANER MILLING MACHINES |
|||||||||||||||||
|
BXM220A |
BXM220B |
BXM220C |
BXM220D |
BXM220E |
BXM225B |
BXM225C |
BXM225D |
BXM230B |
||||||||||
|
最大过件尺寸 Max.allowable dimensions of workpiece |
长 mm Length |
4000 |
6000 |
8000 |
10000 |
12000 |
6000 |
8000 |
10000 |
12000 |
||||||||
|
宽 mm Width |
2000 |
2500 |
3000 |
|||||||||||||||
|
高 mm Height |
1500 |
2000 |
||||||||||||||||
|
最大加工重量 kg Max. machining weight |
18000 |
22000 |
32000 |
40000 |
48000 |
28000 |
35000 |
40000 |
45000 |
|||||||||
|
电机功率 kw Power |
30 |
37 |
45 |
55 |
55 |
45 |
55 |
75 |
75 |
|||||||||
|
工作台 Table |
面积 Size |
长 mm Length |
4000 |
6000 |
8000 |
10000 |
12000 |
6000 |
8000 |
10000 |
12000 |
|||||||
|
宽 mm Width |
1600 |
2200 |
2600 |
|||||||||||||||
|
齿条允许拉力Max.allowable pull of rack |
100000 (N) |
|||||||||||||||||
|
行程速度 m/min Speed |
0.08-30(无级Stepless) |
|||||||||||||||||
|
两立柱间距离 mm Dis.between columns |
2020 |
2520 |
3020 |
|||||||||||||||
|
垂直刀架进给量 Vertical tool rest feeding rate |
水平 mm Horizontal |
0.2-25(无级) Stepless |
||||||||||||||||
|
垂直 mm Vertical |
0.2-25(无级) Stepless |
|||||||||||||||||
|
侧刀架进给量 mm Feeding rate of side tool rest |
0.2-12(无级) Stepless |
|||||||||||||||||
|
横梁升降速度 mm/min Up/down speed of beam |
360 |
|||||||||||||||||
|
刨杆最大截面 mm Max.sectional area of planing arbor |
60 x 60 |
|||||||||||||||||
|
机床外形尺寸 External dimensions |
长 mm Length |
8700 |
12700 |
16700 |
20700 |
24700 |
12700 |
16700 |
20700 |
24700 |
||||||||
|
宽 mm Width |
4300 |
4300 |
4300 |
4300 |
4300 |
4800 |
4800 |
4800 |
5300 |
|||||||||
|
高 mm Height |
3500 |
3500 |
3500 |
3500 |
3500 |
4200 |
4200 |
4200 |
4650 |
|||||||||
