Specification  Item    Unit Y32-63 Y32-100 Y32-200 Y32-315 Y32-315A Y32-500 Y32-500A Y32-630 Y32-800 Y32-1000 Y32-1600 Y32-2000 Y32-2500  Nominal Pressure  KN 630 1000 2000 3150 3150 5000 5000 6300 8000 10000 16000 20000 25000  Ejecting Force  KN 180 190 300 400 400 1000 1000 1000 1000 1000 2000 2500 -  Back Stroke Force  KN 190 320 470 600 600 1000 1000 1000 1100 1300 1000 2600 1000  Stroke Length  mm 400 600 710 800 800 900 900 900 900 900 1000 1000 1200 Ejecting Stroke  mm 150 200 200 250 250 350 350 350 350 350 400 300 -  Opening Height  mm 600 900 1120 1250 1250 1500 1500 1500 1500 1500 1500 2500 2500  Speed of Slide Idle Stroke  mm/S 76 80 120 100 100 100 140 80 120 120 150 150 150  Work  mm/S 15 10 10-15 6-12 6-12 4-10 4-10 4-10 5-12 4-12 5-12 4-10 5-12 Back Stroke mm/S 70 50 80 65 65 80 80 70 90 90 150 150 120  Ejecting Speed Upward mm/S 80 80 95 95 95 80 80 80 65 80 50 40 -  Back mm/S 160 160 135 135 135 160 160 220 200 170 80 120 -  Bolster Surface  L.R. mm 520 690 1000 1260 2000 1400 2200 1600 1500 1500 2500 2000 2800  F.B.  mm 490 630 900 1120 1400 1400 1400 1600 1500 1500 1800 2000 2400  Overall Dimension L.R. mm           4060 5000 5145 5100 4900 8300 8000 3650 F.B. mm           3525 3525 4600 4200 3400 3000 3000 5900  Above Ground  mm 2592 3090 3950 4390 4680 5700 5700 6000 7100 7500 5925 7660 7530  Power of Motor  KW 7.5 7.5 22 22 22 44 46 60 74 68 91..6 183 156 Weight Kg 3000 3500 10500 15500 28000 29000 42000 42000 51000 54000 142000 148000

Purpose and structure performance

    The press is suitable for pulling, stretching, punching, bending and flanging of metal materials, and also for amendment, pressing and molding of powder and abrasive products. Movable worktable, punching cushion equipment, photo guard equipment, stroke pressure value indicator, industrial touch screen and PLC programmable controller are optional.

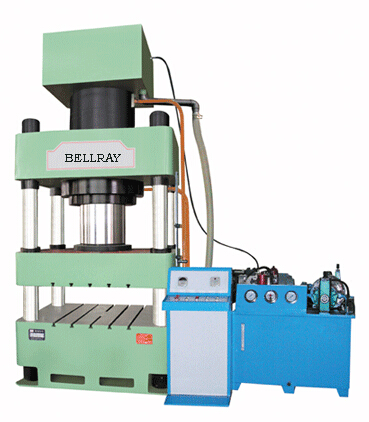

    The press has three-beam and four-pole structure, which means economical and practical. Hydraulic control adopts plug-in valve integrative system, which means reducing leaking points, reliable motion and long service life. It could realize fixed pressure and fixed stroke, which means pressure maintaining and time delay. The working pressure and stroke could be adjusted in the specified range. Centralize control button could offer three operation modes: adjustment, manual and semiautomatic.
