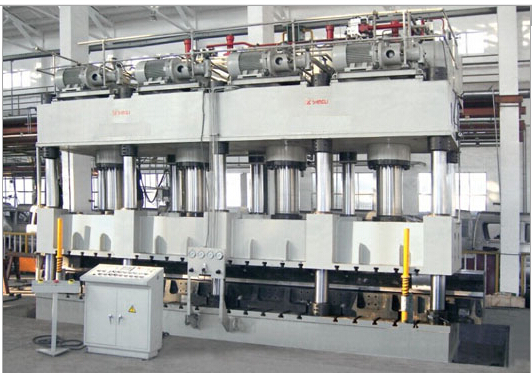

YL89 series hydraulic press for automobile main sill forming
·  Main Features:
·  YL89 series hydraulic press for automobile main sill forming
■ The machine tool may operate in a single set or together with other machines.
■ The beams of the machine tool are in welded structure,and are tempered as a whole.The machine,processed by means of a large-sized ground type milling and boring tool,is marked with high precision.
■ The machine body is in a multi-column structure.The surface of the columns has gone through medium-frequency tempering treatment,and is marked with high strength,high rigidity and high wearing resistance and tensile strength.
■ An imported displacement sensor is adopted for detecting the slide block travel and giving signals.The machine has closed loop control,electrohydraulic proportional pump;and the oil cylinder is marked with excellent synchronization and the slide block is marked with high performances of eccentric load resistance.
■ The machine tool is fitted with a unique electrical cabinet,and has Mutsubishi PLC+touch screen control.Concentrated operation can be achieved by achieved by means of an operating panel.In the semi-automatic operating conditions,the operating modes include the fixed pressure mode and the fixed travel mode.In the fixed pressure mode,the machine has the function of retaining the pressure and extend the time as well as automatic return.
■ The machine tool has a full series of safety devices including double-hand operation,emergent stop,overload protection,eccentric load protection,guardrails,etc.


Specifications

			YL89-1600	YL89-2000	YL89-2400	YL89-3000	YL89-4000	YL89-4500
Rated force		kN	4000 4	5000 4	4000 6	5000 6	6733 6	7500 6
Return force		kN	500 4	570 4	500 6	570 6	1110 6	1150 6
Ram stroke		mm	900	900	900	900	1000	900
Daylight		mm	1500	1500	1500	1500	1600	1500
Knock out force		kN	400 8	500 8	400 12	400 12	520 12	480 12
Cushion return force		kN	250 8	280 4	250 12	250 12	260 12	210 12
Knock out stroke		mm	300	300	300	300	300	300
Ram speed	Idle stroke	mm/s	120	120	130	110	100	100
	Pressing	mm/s	8.5	8	9.5	10	9	8
	Return	mm/s	70	70	75	85	55	55
Knock out Speed	Knock out	mm/s	40	40	45	60	70	60
	Return	mm/s	105	95	75	100	135	140
Table size	L-R	mm	7000	8000	4500 2	5000 2	8000+4000	6000 2
	F-B	mm	1800	1850	1800	1850	2290	2290
Table size	L-R	mm	7000	8000	4500 2	5000 2	8000+4000	6000 2
	F-B	mm	1150	1150	1150	1150	1500	1500
Overall dimensions	L-R	mm	7400	8400	9500	10500	12010	12500
	F-B	mm	3500	3550	3500	3550	3200	4000
	Height above floor	mm	5600	5900	5900	6200	4620	6500
Motor power		kW	45 4	45 4	45 6	55 6	75 6	75 6
Weight of the press machine		kg	110000	160000	200000	240000	280000	290000
