Work table can swivel 45 degree
X.Y & Z axis auto feeding
Mill head swivel ±360 degree with high performance
Spindle Taper is ISO 50,Large torque.

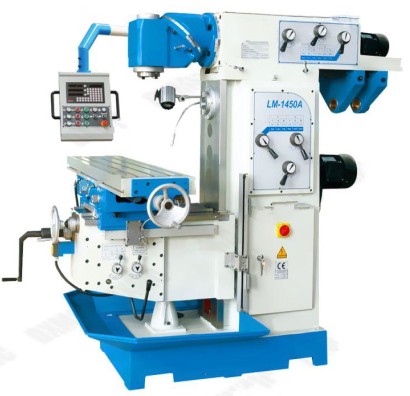

| Specifications | LM1450A |
| Spindle taper | ISO50 (H/V) |
| Difference from spindle axis to guide way (mm) | 505 |
| Horizontal axis middle height (mm) | 0-480 |
| Table size (mm) | 1500*360 |
| Table travel (mm) | 1000*400*405 |
| Feeding speed (mm/min) | 30,55,100,190,350,630,2000 |
| Main motor (kw) | 4 |
| Feeding motor (kw) | 1.5 |
| Spindle speed (rpm) | 60-1800 |
| Overall dimensions (mm) | 2000*2000*2250 |
| N.W/G.W (kg) | 2650/2850 |
