| Specification | Unit | Technical parameters |
| Spindle taper | 7:24 ISO40 | |
| Distance from horizontal spindle to worktable | mm | 100-500 |
| Distance from horizontal spindle to supporting | mm | 0-500 |
| Spindle speed range | r/min | 35-1600 |
| Swivel angle of swivel head | 360° | |
| Table size | mm | 1120× 260 |
| Table travel(x/y/z) | mm | 580/270/400 |
| Range of longitudinal,cross travel | mm/min | 18-308(8steps) |
| Vertical up-down(z axis) speed table | mm/min | |
| T-slot NO./width/distance of rotary table | mm | 3/14/63 |
| Main motor | KW | 2.2 |
| Motor for rapid device of table | W | 250 |
| Motor of lifted table | W | |
| Motor of cooling pumps | W | 90 |
| Speed of cooling pumps | L/min | 25 |
| N.W/G.W. | kg | 1150/1300 |
| Overall dimension | mm | 1665×1500×1750 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002

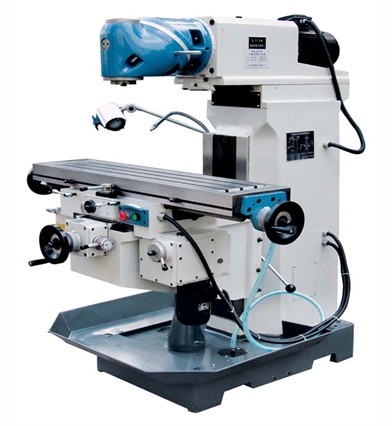

Swivel head milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Swivel head milling machine
XL6226
XL6226
