| Specification | Unit | Technical parameters |
| Spindle taper |
ISO40(VERTICAL) ISO50(HORIZONTAL) |
|
| Spindle travel | mm | 140 |
| Sleeve feed | mm/r | 0.04/0.08/0.15 |
| Distance from vertical spindle to column | mm | 200-600 |
| Distance from vertical spindle to table | mm | 180-530 |
| Distance from horizontal spindle to table | mm | 0-350 |
| Distance from horizontal spindle to arm | mm | 230 |
| Spindle speed range | r/min |
63~2917/10(vertical) 60~1800/12(horizontal) |
| Table size | mm | 1250×360 |
| Table travel | mm | 1000×320×350 |
| Range of longitudinal,cross travel | mm/min | 15~370/(MAX.540) |
| Up/down speed of table | mm | 590 |
| T of table(N0./WIDTH/DISTANCE) | mm | 3/18/80 |
| Main motor | kw | 5.5(vertical)4(horizontal) |
| Motor of table power feed | kw | 0.75 |
| Up/down motor of headstock | kw | 1.1 |
| Coolant pump motor | kw | 90 |
| Speed of coolant pumps | L/min | 25 |
| Overall dimension | mm | 2220×1790×2360 |
| N.W./G.W. | kg | 2340/2540 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

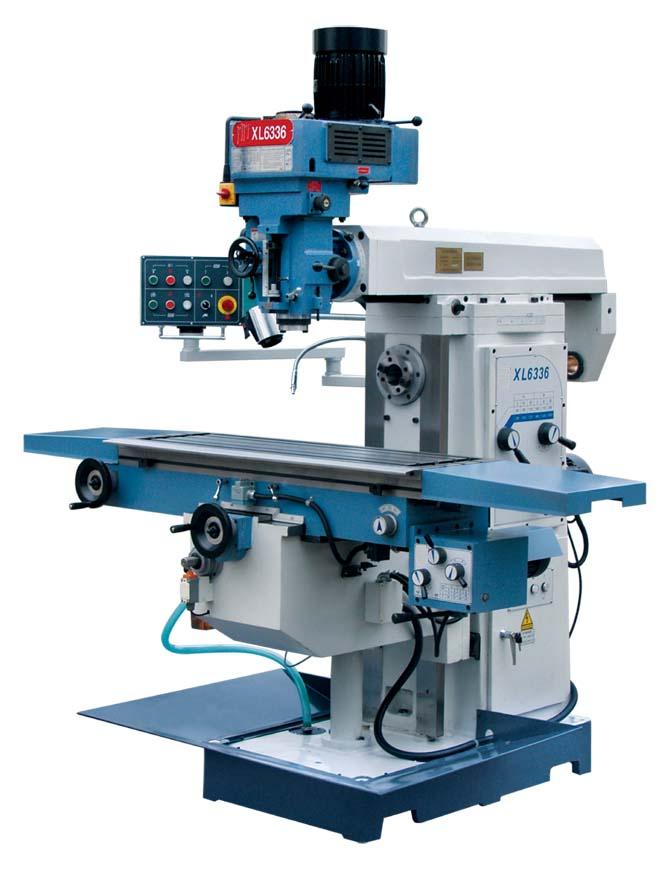

XL6336
