| Specification | Unit | Technical parameters |
| Spindle taper | 7:24 ISO40 | |
| Spindle travel | mm | 150(vertical) |
| Sleeve feed | mm/r | 0.04/0.08/0.15(3 steps) |
| Distance from spindle to column | mm | 200-550(vertical) |
| Distance from spindle to table | mm | 150-500(vertical) |
|
Distance fron spindle center to table surface |
mm | 0-350(horizontal) |
| Distance from spindle center to arm | mm | 190(horizontal) |
| Spindle speed range | r/min |
(20 steps) 63-5817(vertical) (12 steps) 60-1350(horizontal) |
| Table size | mm | 1250×320 |
| Table travel (x/y/z) | mm | 800×300×350 |
| Range of longitudinal, cross travel | mm/min | 15-370(8 steps)540(max.) |
| Vertical up-down speed table | mm/min | 560 |
|
T-slot NO./width/distance of rotary table |
mm | 3/14/70 |
| Main motor | Kw | 3.7(vertical)2.2(horizontal) |
| Motor for rapid device of table | Kw | 0.75 |
| Motor of lifted table | Kw | 1.1 |
| Speed of cooling pumps | L/min | 12 |
| N.W/G.W. | kg | 1750/1950 |
| Overall dimension | mm | 1720×1520×2225 |
PRODUCTS LIST
- LASER CUTTING MACHINE
- PRESS BRAKES
- SHEARING MACHINES
- POWER PRESS
- PROFILE BENDING MACHINE
- ROLLING MACHINES
- IRON WORKER
- BAND SAWING
- LATHE
- SURFACE GRINDING
- PLANER MILLING MACHINE
- MILLING MACHINE
- LENGTH-STACKING LINE
- WELDING AUXILIARY EQUIPMENT
- PLANING MACHINE
- FORKLIFT TRUCK
- GRINDER
CONTACT US
Telephone: +086 0531 82970068
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Phone: +86 13964106863
website: www.bellray. cn
E-mail : bellray@126.com
Address: Room 1009, Budding 2, Jiuchengshangdu, Shungeng Road217#, Jinan City, Shan Dong, China. 250002
Milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Milling machine

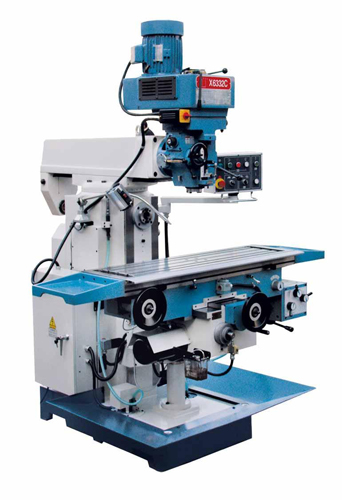

MILLING MACHINE X6332C
