2: Increase travel, span, the work surface
3: Enhanced spindle knife device can be configured to unload
4: Configure the table X to stepless feed, optional X, Y, Z coordinate digital
5: The guide surface and the main transmission parts centralized lubrication
6: Spindle box can be plus or minus 45 degrees rotation
7: Headstock Electric lift
8: cooling and protective devices
9: The electrical control cabinet with PIC main electrical components imported components

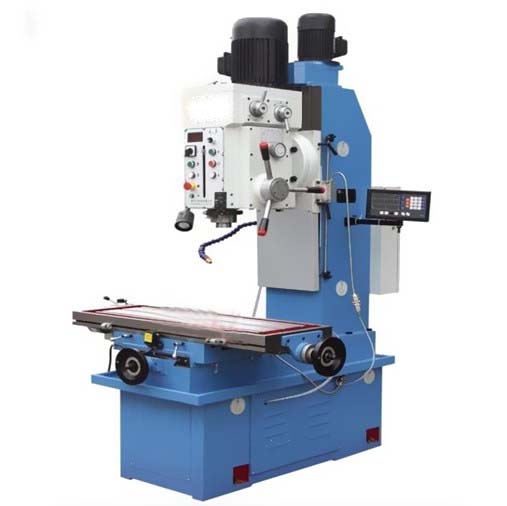

| Model | ZX7150A |
| Tapping the largest diameter | 45mm |
| Maximum drilling diameter | 50mm |
| Maximum milling diameter | 125mm |
| Distance of spindle center to column | 360mm |
| Spindle nose to table distance | Minimum 180mm maximum600mm |
| Spindle travel | 200mm |
| Spindle taper hole | MT4 |
| Spindle box lift travel | 420mm |
| Vertical speed of the spindle box | 1250mm/min |
| Maximum turning angle of the spindle box | Plus or minus 45 degrees |
| Spindle drilling speed range | 38-1730r/min |
| Number of spindle speeds | 12 |
| Spindle automatic feed rate | 0.1,0.2,0.3mm/r |
| Spindle automatic feed to the series | 3 Level |
| Scale loop per revolution feed | 102mm |
| Workbench X to the feed series | Stepless |
| Workbench X to the feed range | 4-480mm/min |
| Workbench X to the fast-moving speed | 640mm/min |
| Table area | 350*1000mm |
| Workbench X / Y to travel | 500*350mm |
| T-slot table size | 3-14*100mm |
| Power of main motor | 2.2,2.8 KW (double speed) |
| Motor power of the price rise | 0.75kw |
| Cooling pump motor power | 0.09kw |
| Workbench tool path parameters | 220v,20nm |
| Weight of machine | 1300kg |
| Maximum outline size of the machine | 1550*1580*2210mm |
