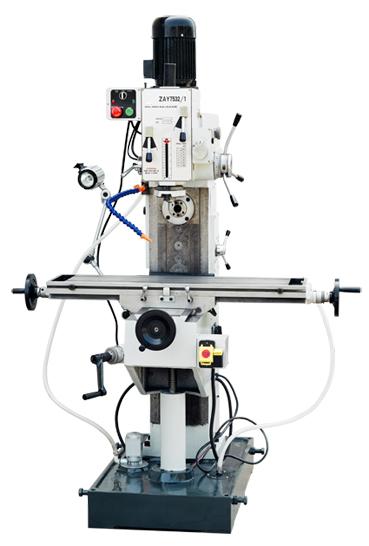

ZAY7532 Drilling milling machine

ITEM ZAY7532/1 ZAY7540/1 ZAY7545/1 ZAY7550/1
Max.drilling capacity 32mm 40mm 45mm 50mm
Max.milling capacity(end/face) 25/100mm 32/100mm 32/100mm 32/100mm
Swivel angle of headstock(perpendicular) ±90° ±90° ±90° ±90°
spindle taper(end/face) M.T.3  M.T.4 M.T.4 M.T.4 M.T.4
Distance from spindle nose to worktable surface 80-480mm 80-480mm 80-480mm 80-480mm
spindle travel 130mm 130mm 130mm 130mm
beam travel 500mm 500mm 500mm 500mm
step of spindle speed(end/face) 6\12 6\12 6\12 6\12
Range of spindle speed(end/face)     50HZ 90-1600 /38-1280 (r/min) 90-1600 /38-1280 (r/min) 90-1600 /38-1280 (r/min) 90-1600 /38-1280 (r/min)
60HZ (4 poles) 110-1920 /45-1540 (r/min) 110-1920 /45-1540 (r/min) 110-1920 /45-1540 (r/min) 110-1920 /45-1540 (r/min)
Step of spindle auto-feeding(end/face) 3 3 3 3
Range of spindle auto-feeding(end/face) 0.12 0.18 0.25 0.12 0.18 0.25 0.12 0.18 0.25 0.12 0.18 0.25
Worktable size 800×240mm 800×240mm 800×240mm 1000×240mm
Forward and afterward travel of worktable 300mm 300mm 300mm 300mm
Left anf right travel of worktable 585mm 585mm 585mm 785mm
Vertical travel of worktable 400mm 400mm 400mm 400mm
Min.distance from spindle axis to column 290mm 290mm 290mm 290mm
Power(end/face) 0.75KW(1HP)/1.5KW 1.1KW(1.5HP)/1.5KW 1.5KW(2HP)/1.5KW 1.5KW(2HP)/1.5KW
Cooling pump power 0.04KW 0.04KW 0.04KW 0.04KW
Net weight/Gross weight 930kg/1030kg 933kg/1033kg 935kg/1035kg 950kg/1050kg
Packing size 1020×1350×1850mm 1020×1350×1850mm 1020×1350×1850mm 1220×1350×1850mm
