Bed type milling machineThe current position: HOME > PRODUCTS > MILLING MACHINE > Bed type milling machine

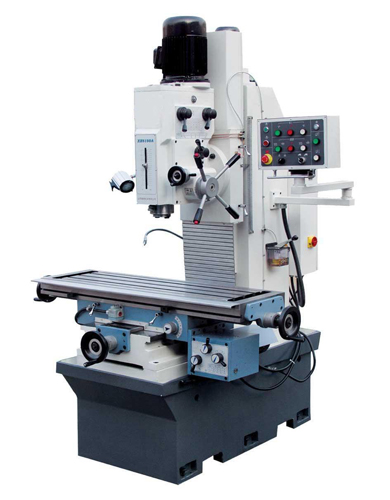

XZ5150A

Specification Unit XZ5150A
Max.vertical milling dia. mm 32
Max end mill width mm 125
Max.drilling dia. mm 50
Spindle taper   NT40
Spindle travel mm 180
Spindle seeds range r/min 95-2250(16 steps)
Distance spindle to table mm 120-520
Distance spindle to column mm 400
Swivel angle of headstock   ±45°
Table size mm 1500×320
Table travel mm 900×400
Max loading of table kg 500
T of table(no./width/distance) mm 3/14/70
Main motor KW 1.5/2.4
Motor of table power feed W 750
Coolant pump motor W 40
N.W./G.W. kg 1800/2000
Overall dimension mm 1800×1700×2200
