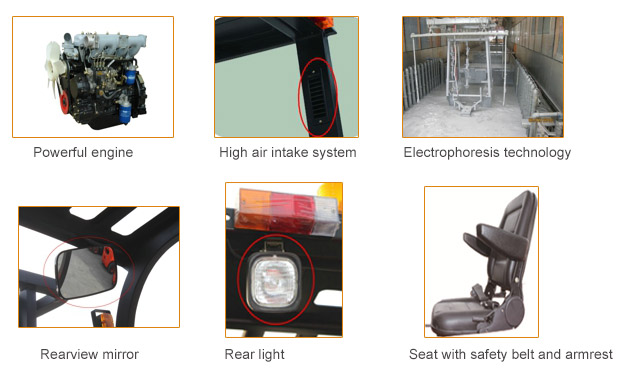

♦ Powerful engine
♦ Hydraulic gear-box and hydraulic steering
♦ Fashionable design, high efficiency
♦ Safe overhead guard
♦ Warning light
♦ Rear light for working in the dark
♦ Side shifter is optional
♦ Optional mast: 2-stage 3.5m/4mmast; 3-stage4.5m/5m//6mmast.
♦ Optional engine: ISUZU engine.
Technical parameters
|
General |
|
Brand |
BELLRAY |
|
|
1 |
Model |
|

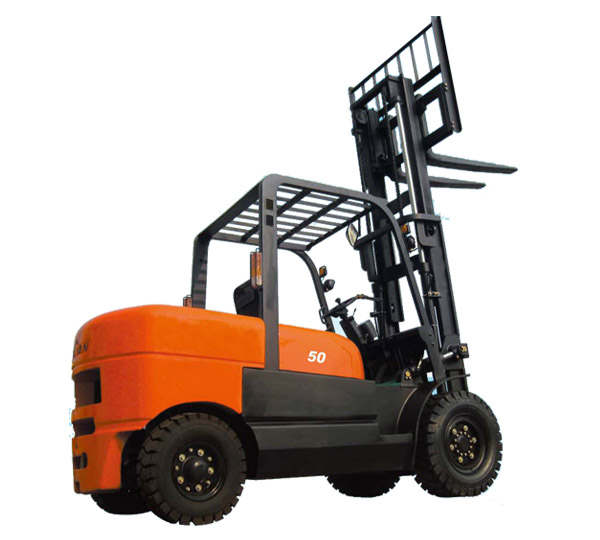

CPCD50F |
|
|
2 |
Rated capacity |
kg |
5000 |
|
|
3 |
Load center |
mm |
500 |
|
|
4 |
Power type |
|
Diesel |
|
|
5 |
Transmission |
|
Hydraulic/Mechanical |
|
|
Dimensions |
6 |
Lifting height |
mm |
3000 |
|
7 |
Free lifting height |
mm |
150 |
|
|
8 |
Turning radius |
mm |
3000 |
|
|
9 |
Overall length |
mm |
4350 |
|
|
10 |
Overall width |
mm |
1400 |
|
|
11 |
Overall height (mast lowered) |
mm |
2330 |
|
|
12 |
Overall height (mast raised) |
mm |
4265 |
|
|
13 |
Overall height (overhead guard) |
mm |
2330 |
|
|
14 |
Fork length |
mm |
1220 |
|
|
15 |
Fork width |
mm |
150 |
|
|
16 |
Fork thickness |
mm |
50 |
|
|
Performance |
17 |
Max. driving speed (with/without load) |
km/h |
20/24 |
|
18 |
Max. lifting speed (with load) |
mm/s |
375 |
|
|
19 |
Max. traction (with/without load) |
kn |
31/18 |
|
|
20 |
Gradeability (with/without load) |
% |
15/20 |
|
|
21 |
Tilting angles (forward/backward) |
° |
6/12 |
|
|
22 |
Service weight |
kg |
6800 |
|
|
Engine |
23 |
Engine model |
|
LR4A3/4JR3 |
|
24 |
Power |
kw |
59 |
|
|
25 |
Rated speed |
rpm |
2400 /2200 |
|
|
26 |
Displacement |
L |
4.3 |
|
|
27 |
No. of cylinder |
|
4 |
|
|
Wheel |
28 |
Front overhang |
mm |
565 |
|
29 |
Wheel base |
mm |
2150 |
|
|
30 |
Front tread |
mm |
1180 |
|
|
31 |
Rear tread |
mm |
1190 |
|
|
32 |
Front tire |
|
300-15 |
|
|
33 |
Rear tire |
|
7.00-12 |
|
